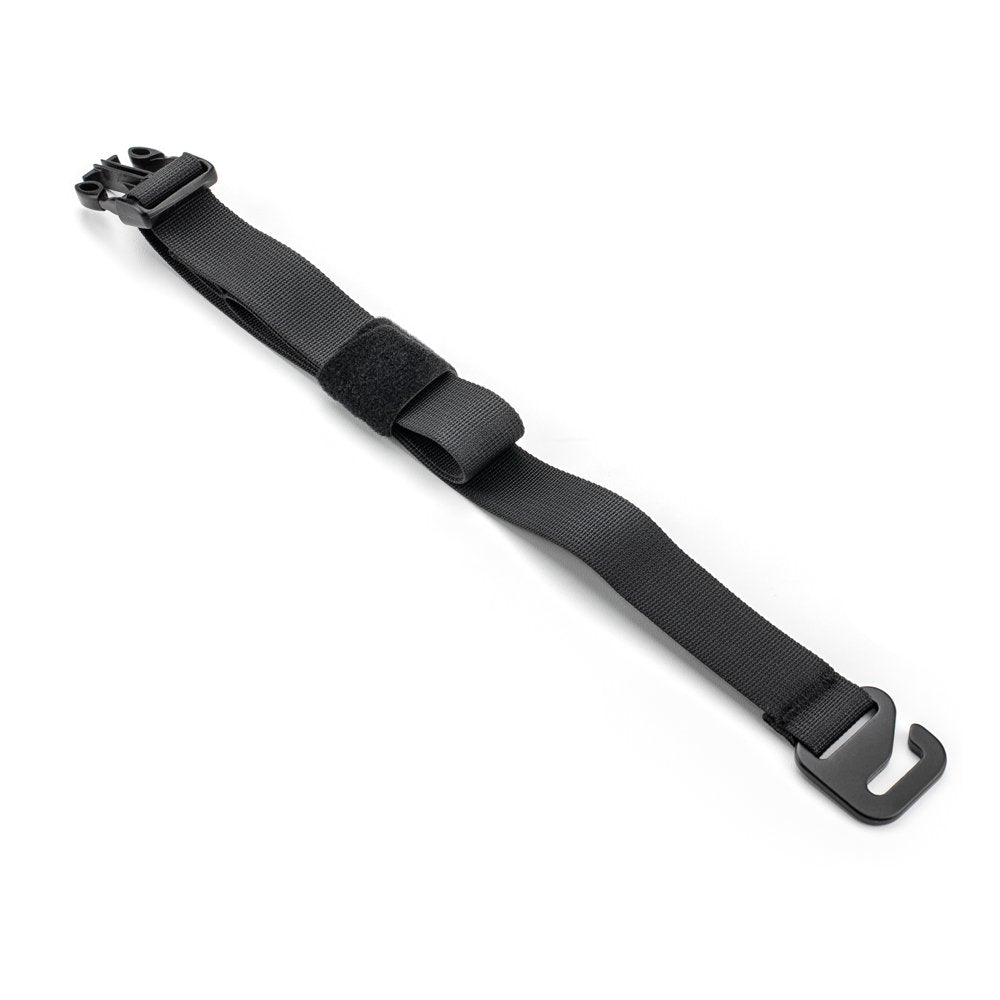

Kriega US40-DRYPACK Long Hook Strap Single

Kriega US40-DRYPACK Long Hook Strap Set allow you to upgrade alloy hook to a long reach fitment.

Fitting of the Kriega US-DRYPACK Hook Strap Set

Some bikes already have web loops attached to the seat-pad/base. In this case we still recommend the fitting of the Kriega loops, as fitting to the subframe is far stronger than to the seat.

Remove bike seat and locate the best mounting areas on the rear subframe. It may be necessary to slot the internal plastic tray if no subframe metalwork is exposed. Attach the 4 x 20mm web loops securely to high strength areas of the frame. The 20mm loops are adjustable in length. Final adjustments should be carried out with the seat/pad fitted. Once set, the web must be threaded back through the adjuster to lock-off the webbing. See the threading diagram on this page. To fit the US-pack, hook on the web loop, attach the top quick-release buckle and cinch down the bag onto the bike. Always use the 2 x strap keepers on the web to manage the loose ends. Please also ensure that the quick-release buckles are correctly 'clicked'

Specifications of the Kriega US40 Long Hook Strap

• Custom 6061-T6 alloy hooks
• Multi-position: inline or across bike seat
• Easy on/off bike
• No loose straps left on bike
• Std. strap length 820mm
• 10 year guarantee
